Summary

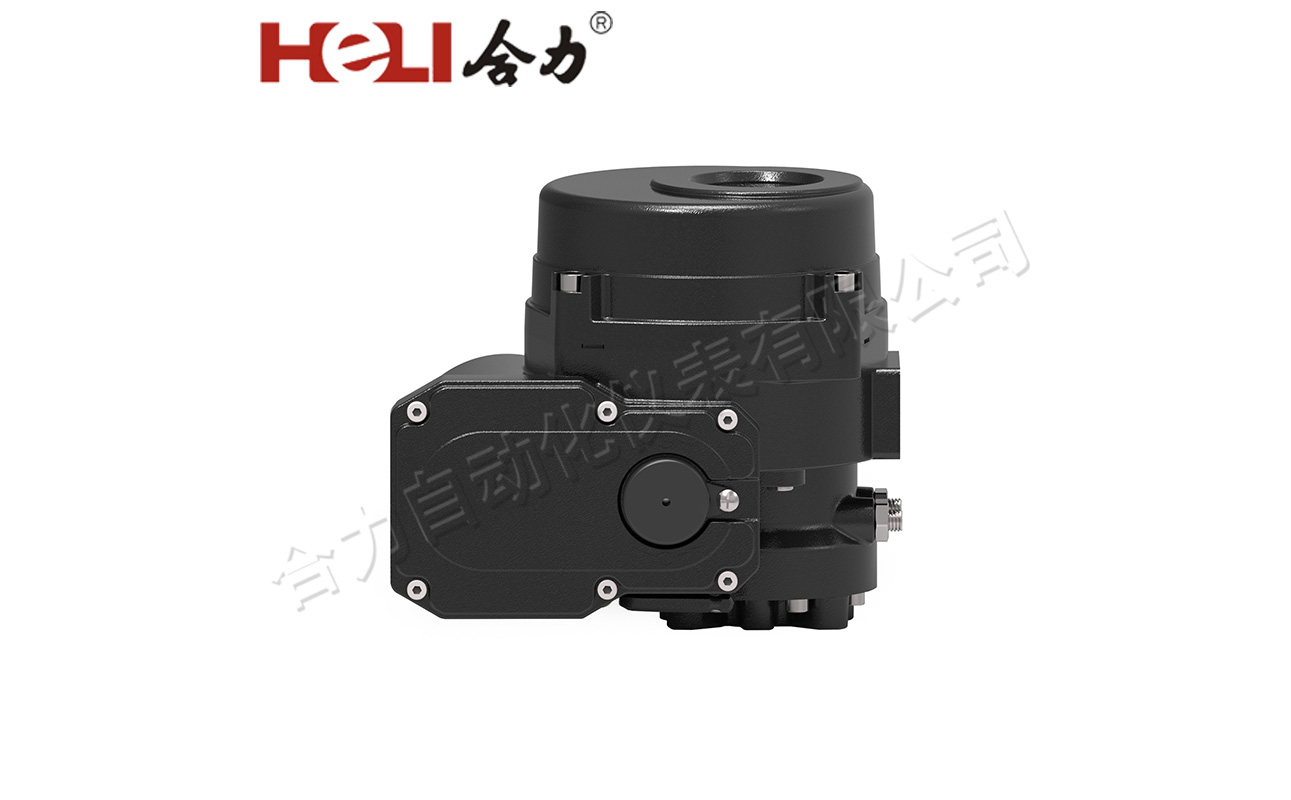

HEQ series combines advanced technologies from Germany and Japan to provide a modular design to suit valves such as butterfly valves, ball valves, gate valves, etc.

Advantages

Compact structure for a narrow space to install and suit a wide range of valves.

Eficient transmission design with structural self-locking.

The unique adjusting cam makes it easier to adjust the valve position.

Double anti-condensation design, the probability of electrical failure is lower.

Modular design, easy to operate in production and maintenance.

High enclosure protection IP67, IP68 as option

High explosion-proof enclosure protection up to Exd IⅡ Ct6.

Independent electrical compartment design and powerful pre-protection circuit.

Control accuracy up to 1%.

HEQ ON-OFF-Modulating Dimension

Item	A	B	C	D	E	F	G	L	L1	L2	M	I	◇K*K	◇JMax	◇KMax	Stem depth
HEQ1-05	112	146	166	120	112	100	35	138	98	66	70	F05/F07	M11 M14	≤φ16	≤◇17	31
HEQ1-08
HEQ1-10
HEQ2-15	131	158	182	120	130	100	35	156	93	75	70	F05/F07	M14 M17	≤φ16	≤◇17	31
HEQ2-20
HEQ3-25	171	180	255	120	170	100	35	201	98	82	70	F07/F10 F10/F12	M14 M17 M22 M27	≤φ32	≤◇27	45
HEQ3-40
HEQ3-60
HEQ4-80	200	205	230	120	185	150	35	214	141	86	70	F12 F10/F14	M27 M36	≤φ45	≤◇36	45
HEQ4-100
HEQ4-120
HEQ5-200	232	231	360	120	212	150	35	250	141	100	70	F14orF16	M36	≤φ52	≤◇46	74

HEQ5-250
HEQ5-300

Item	A	B	D	E	H/H1	K*K(Max)		J(Max)	X	Y	Z	L	L1	L2	M	Stem depth
Item	A	B	D	E	H/H1	S	A	J(Max)	X	Y	Z	L	L1	L2	M	Stem depth
HEQ400	339	137	120	339	F14/F16/F25	50*50	35*35	φ60	274	365	395	355	141	137	70	120
HEQ600	388	137	120	388	F14/F16/F25	50*50	35*35	φ60	274	392	405	391	141	137	70	120
HEQ800	388	137	120	388	F14/F16/F25	50*50	35*35	φ60	274	392	405	391	141	137	70	120
HEQ1000	388	137	120	388	F14/F16/F25	50*50	35*35	φ60	274	392	405	391	141	137	70	120

Wiring Drawing

HEQ-Technical Specification

Actuator Series	HEQ series electric actuator
Torque	50~3000N.m(without gearbox)；3000~8000N.m(with gearbox)
Enclosure protection	IP67 as standard,IP68 as option(15m under water without leakage for 72hours)
Explosion proof	ExdllCT6
Working time	ON-OFF:S2:120Min Modulating:S4:30~50%1200 start/Hour
Voltage	AC110V, AC220V±10%1Phase;50/60Hz±5%, as option AC/DC 24V, AC380V
Ambient temperature	-25℃~+70℃
Ambient humidity	90%（25℃）
Motor	F class, thermal protection
Mounting base	ISO5211 standard with star bushing
Modulating configuration	Provide signal loss mode,4mA and 20mA position calibrate
Manual operation	With handle lever
Position indicator	Mechanical arrow(Dome indicator as option)
Input signal	ON-OFF control: Lamp signal and dry contact signal Input signal Modulating control:4-20mA as standard Inout impedance:150Q).0-10V,2-10V;(Multiple signals appearance) Optical isolation
Output signal	ON-OFF control: Lamp signal+dry contact signal Modulating control:4-20mA as standard(Output impedance:750Q).0-10V,2-10V:(Multiple signals appearance) Optical isolation
Cable entries	Standard:2-M20×1.5, possible to customize
Space heater	As standard(25W~30W)
Color	ColorRAL9004(Black), Epoxy polyester powder coating
Control accuracy	Higher accuracy can be customized

HEQ-Selection

Item		Output torque (N.m)	Working time (S)	Motor consumption (W)	Rated current (A)					Weight (Kg)
Item		Output torque (N.m)	Working time (S)	Motor consumption (W)	AC380V	AC220V	AC110V	DC24V		Weight (Kg)
HEQ1	-05	50	20	12	0.11A	0.25A	0.47A	1.5A	12S	4
	-08	80	30	12	0.11A	0.25A	0.47A	1.5A	18S	4
	-10	100	30	15	0.12A	0.31A	0.53A	1.87A	18S	4
HEQ2	-15	150	40	25	0.13A	0.32A	0.55A	2.1A	22S	5
HEQ2	-20	200	40	30	0.17A	0.41A	0.71A	2.7A	22S	5
HEQ3	-25	250	30	40	0.18A	0.38A	0.72A	4.0A	18S	7
	-40	400	30	60	0.25A	0.5A	1.0A	6.8A	18S	8
	-60	600	30	90	0.3A	0.75A	1.5A	9.5A	18S	9
HEQ4	-80	800	35	90	0.38A	0.75A	1.5A	9.5A	20S	18
	-100	1000	54	90	0.38A	0.75A	1.5A	9.5A	30S	19
	-120	1200	54	120	0.55A	1.1A	2.3A	12.2A	30S	19.5
HEQ5	-150	1500	30	200	0.9A	1.9A	3.9A	13A	35S	28
	-200	2000	40	200	0.9A	1.9A	3.9A	18A	35S	28
	-250	2500	50	200	0.9A	1.9A	3.9A	23A	35S	28
	-300	3000	60	200	0.9A	1.9A	3.9A	30A	35S	28
HEQ4JS	-400	4000	140	90	0.38A	0.75A	1.5A	9.5A	120S	52
HEQ5JS	-600	6000	120	200	0.9A	1.9A	3.9A	13A	120S	62
	-800	8000	160	200	0.9A	1.9A	3.9A	18A	120S	62
	-1000	10000	200	200	0.9A	1.9A	3.9A	23A	120S	62

Note:

1. Above table is the factory standard configuration of the product.

2. The rated torque will be 0.75 times the maximum torque.

3. Above working time is for 50HZ, the working time of 60HZ will be 5 to 6 times of 50HZ. The maximum torque is the same as above.

4. Please contact our sales staff to customize the sizes according to the valve stem.
