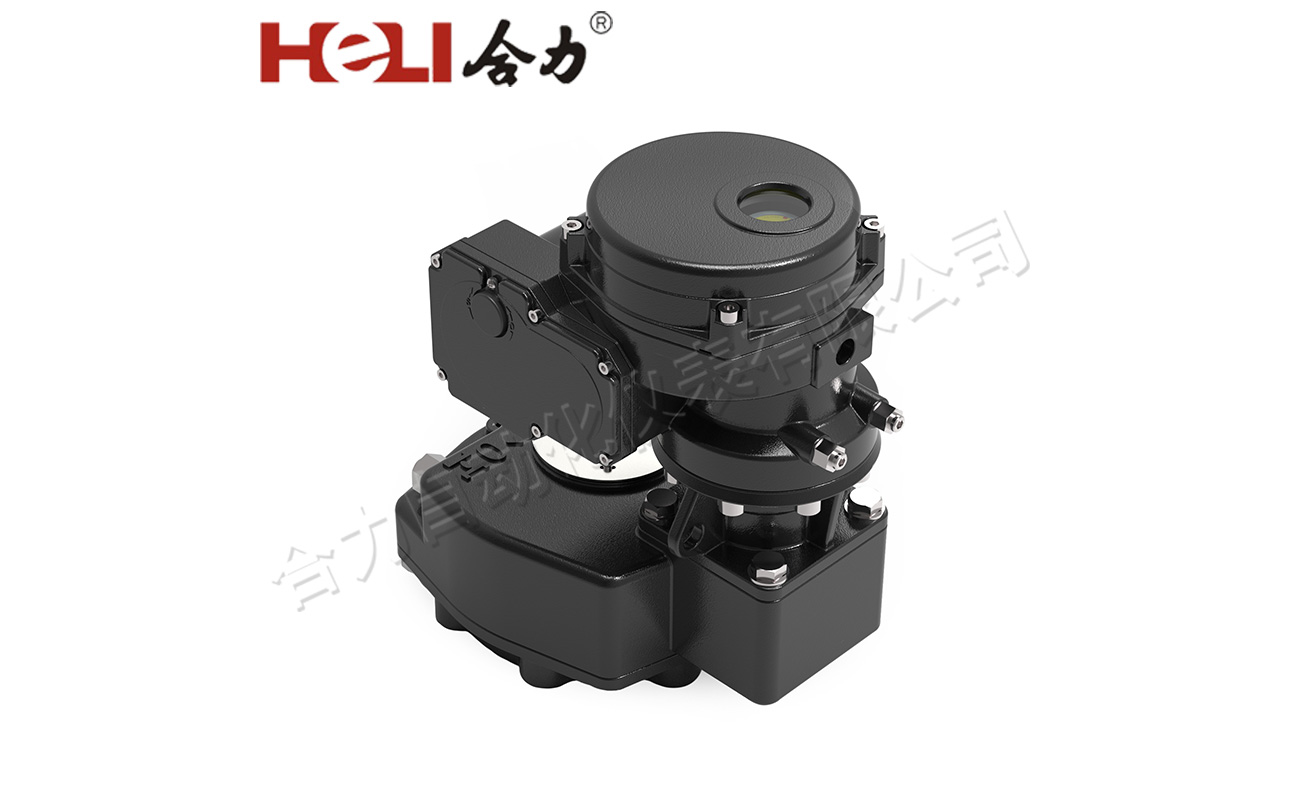

HEQ intelligent type
HEQ series combines advanced technologies from Germany and Japan to provide a modular design to suit valves such as butterfly valves, ball valves, gate valves, etc.
HEQ series combines advanced technologies from Germany and Japan to provide a modular design to suit valves such as butterfly valves, ball valves, gate valves, etc.
Summary
HEQ series combines advanced technologies from Germany and Japan to provide a modular design to suit valves such as butterfly valves, ball valves, gate valves, etc.
Advantages
Compact structure for a narrow space to install and suit a wide range of valves.
Eficient transmission design with structural self-locking.
The unique adjusting cam makes it easier to adjust the valve position.
Double anti-condensation design, the probability of electrical failure is lower.
Modular design, easy to operate in production and maintenance.
High enclosure protection IP67, IP68 as option
High explosion-proof enclosure protection up to Exd IⅡ Ct6.
Independent electrical compartment design and powerful pre-protection circuit.
Control accuracy up to 1%.
HEQ ON-OFF-Modulating Dimension
Item | A | B | C | D | E | F | G | L | L1 | L2 | M | I | ◇K*K | ◇JMax | ◇KMax | Stem depth |
HEQ1-05 | 112 | 146 | 166 | 120 | 112 | 100 | 35 | 138 | 98 | 66 | 70 | F05/F07 | M11 | ≤φ16 | ≤◇17 | 31 |
HEQ1-08 | ||||||||||||||||
HEQ1-10 | ||||||||||||||||
HEQ2-15 | 131 | 158 | 182 | 120 | 130 | 100 | 35 | 156 | 93 | 75 | 70 | F05/F07 | M14 | ≤φ16 | ≤◇17 | 31 |
HEQ2-20 | ||||||||||||||||
HEQ3-25 | 171 | 180 | 255 | 120 | 170 | 100 | 35 | 201 | 98 | 82 | 70 | F07/F10 | M14 | ≤φ32 | ≤◇27 | 45 |
HEQ3-40 | ||||||||||||||||
HEQ3-60 | ||||||||||||||||
HEQ4-80 | 200 | 205 | 230 | 120 | 185 | 150 | 35 | 214 | 141 | 86 | 70 | F12 | M27 | ≤φ45 | ≤◇36 | 45 |
HEQ4-100 | ||||||||||||||||
HEQ4-120 | ||||||||||||||||
HEQ5-200 | 232 | 231 | 360 | 120 | 212 | 150 | 35 | 250 | 141 | 100 | 70 | F14orF16 | M36 | ≤φ52 | ≤◇46 | 74 |
HEQ5-250 | ||||||||||||||||
HEQ5-300 |
Item | A | B | D | E | H/H1 | K*K(Max) | J(Max) | X | Y | Z | L | L1 | L2 | M | Stem depth | |
S | A | |||||||||||||||
HEQ400 | 339 | 137 | 120 | 339 | F14/F16/F25 | 50*50 | 35*35 | φ60 | 274 | 365 | 395 | 355 | 141 | 137 | 70 | 120 |
HEQ600 | 388 | 137 | 120 | 388 | F14/F16/F25 | 50*50 | 35*35 | φ60 | 274 | 392 | 405 | 391 | 141 | 137 | 70 | 120 |
HEQ800 | 388 | 137 | 120 | 388 | F14/F16/F25 | 50*50 | 35*35 | φ60 | 274 | 392 | 405 | 391 | 141 | 137 | 70 | 120 |
HEQ1000 | 388 | 137 | 120 | 388 | F14/F16/F25 | 50*50 | 35*35 | φ60 | 274 | 392 | 405 | 391 | 141 | 137 | 70 | 120 |
Wiring Drawing
HEQ-Technical Specification
Actuator Series | HEQ series electric actuator |
Torque | 50~3000N.m(without gearbox)；3000~8000N.m(with gearbox) |
Enclosure protection | IP67 as standard,IP68 as option(15m under water without leakage for 72hours) |
Explosion proof | ExdllCT6 |
Working time | ON-OFF:S2:120Min Modulating:S4:30~50%1200 start/Hour |
Voltage | AC110V, AC220V±10%1Phase;50/60Hz±5%, as option AC/DC 24V, AC380V |
Ambient temperature | -25℃~+70℃ |
Ambient humidity | 90%（25℃） |
Motor | F class, thermal protection |
Mounting base | ISO5211 standard with star bushing |
Modulating configuration | Provide signal loss mode,4mA and 20mA position calibrate |
Manual operation | With handle lever |
Position indicator | Mechanical arrow(Dome indicator as option) |
Input signal | ON-OFF control: Lamp signal and dry contact signal Input signal Modulating control:4-20mA as standard Inout impedance:150Q).0-10V,2-10V;(Multiple signals appearance) Optical isolation |
Output signal | ON-OFF control: Lamp signal+dry contact signal Modulating control:4-20mA as standard(Output impedance:750Q).0-10V,2-10V:(Multiple signals appearance) Optical isolation |
Cable entries | Standard:2-M20×1.5, possible to customize |
Space heater | As standard(25W~30W) |
Color | ColorRAL9004(Black), Epoxy polyester powder coating |
Control accuracy | Higher accuracy can be customized |
HEQ-Selection
Item | Output torque (N.m) | Working time | Motor consumption (W) | Rated current | Weight (Kg) | |||||
AC380V | AC220V | AC110V | DC24V | |||||||
HEQ1 | -05 | 50 | 20 | 12 | 0.11A | 0.25A | 0.47A | 1.5A | 12S | 4 |
-08 | 80 | 30 | 12 | 0.11A | 0.25A | 0.47A | 1.5A | 18S | 4 | |
-10 | 100 | 30 | 15 | 0.12A | 0.31A | 0.53A | 1.87A | 18S | 4 | |
HEQ2 | -15 | 150 | 40 | 25 | 0.13A | 0.32A | 0.55A | 2.1A | 22S | 5 |
-20 | 200 | 40 | 30 | 0.17A | 0.41A | 0.71A | 2.7A | 22S | 5 | |
HEQ3 | -25 | 250 | 30 | 40 | 0.18A | 0.38A | 0.72A | 4.0A | 18S | 7 |
-40 | 400 | 30 | 60 | 0.25A | 0.5A | 1.0A | 6.8A | 18S | 8 | |
-60 | 600 | 30 | 90 | 0.3A | 0.75A | 1.5A | 9.5A | 18S | 9 | |
HEQ4 | -80 | 800 | 35 | 90 | 0.38A | 0.75A | 1.5A | 9.5A | 20S | 18 |
-100 | 1000 | 54 | 90 | 0.38A | 0.75A | 1.5A | 9.5A | 30S | 19 | |
-120 | 1200 | 54 | 120 | 0.55A | 1.1A | 2.3A | 12.2A | 30S | 19.5 | |
HEQ5 | -150 | 1500 | 30 | 200 | 0.9A | 1.9A | 3.9A | 13A | 35S | 28 |
-200 | 2000 | 40 | 200 | 0.9A | 1.9A | 3.9A | 18A | 35S | 28 | |
-250 | 2500 | 50 | 200 | 0.9A | 1.9A | 3.9A | 23A | 35S | 28 | |
-300 | 3000 | 60 | 200 | 0.9A | 1.9A | 3.9A | 30A | 35S | 28 | |
HEQ4JS | -400 | 4000 | 140 | 90 | 0.38A | 0.75A | 1.5A | 9.5A | 120S | 52 |
HEQ5JS | -600 | 6000 | 120 | 200 | 0.9A | 1.9A | 3.9A | 13A | 120S | 62 |
-800 | 8000 | 160 | 200 | 0.9A | 1.9A | 3.9A | 18A | 120S | 62 | |
-1000 | 10000 | 200 | 200 | 0.9A | 1.9A | 3.9A | 23A | 120S | 62 | |
Note:
1. Above table is the factory standard configuration of the product.
2. The rated torque will be 0.75 times the maximum torque.
3. Above working time is for 50HZ, the working time of 60HZ will be 5 to 6 times of 50HZ. The maximum torque is the same as above.
4. Please contact our sales staff to customize the sizes according to the valve stem.
