Design and Components

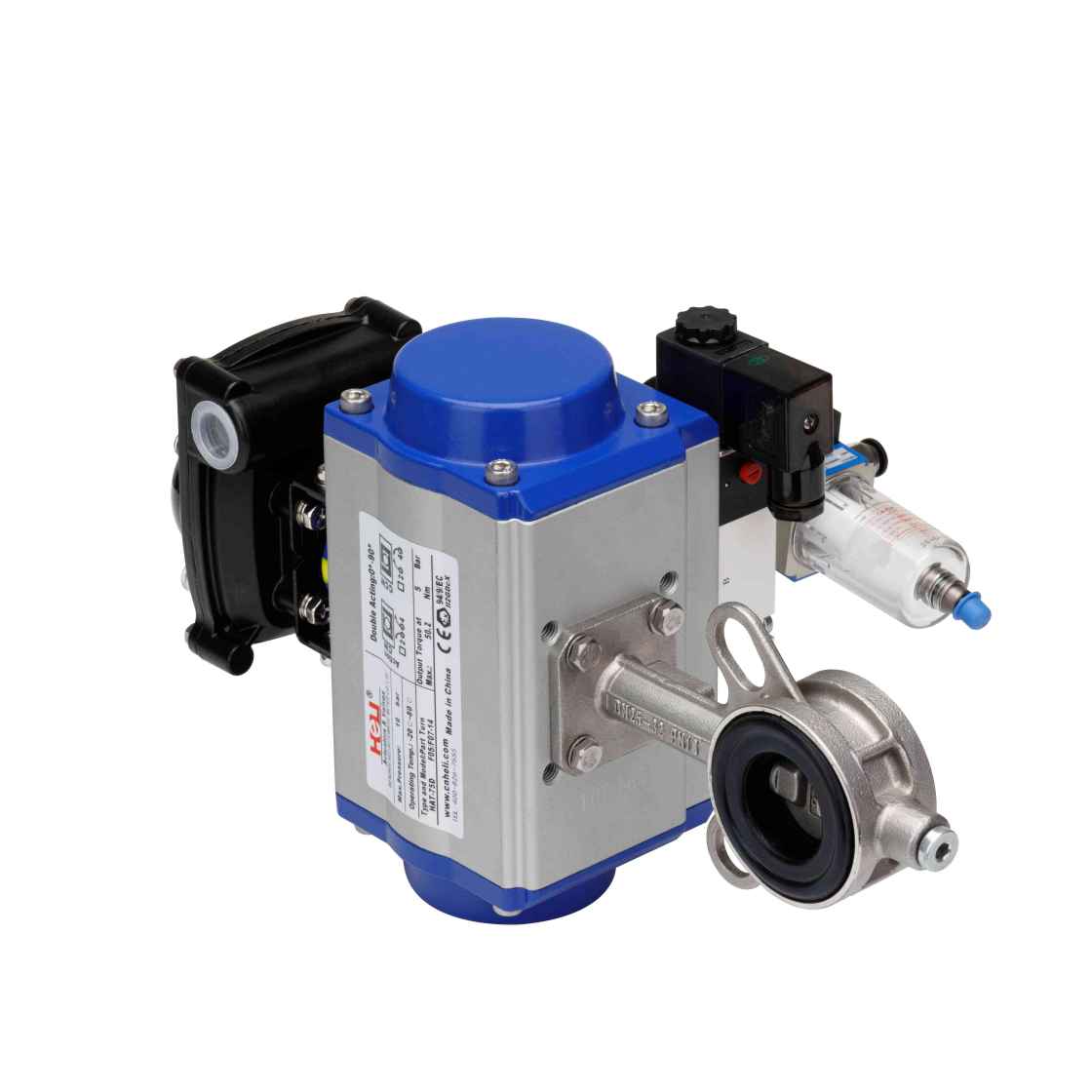

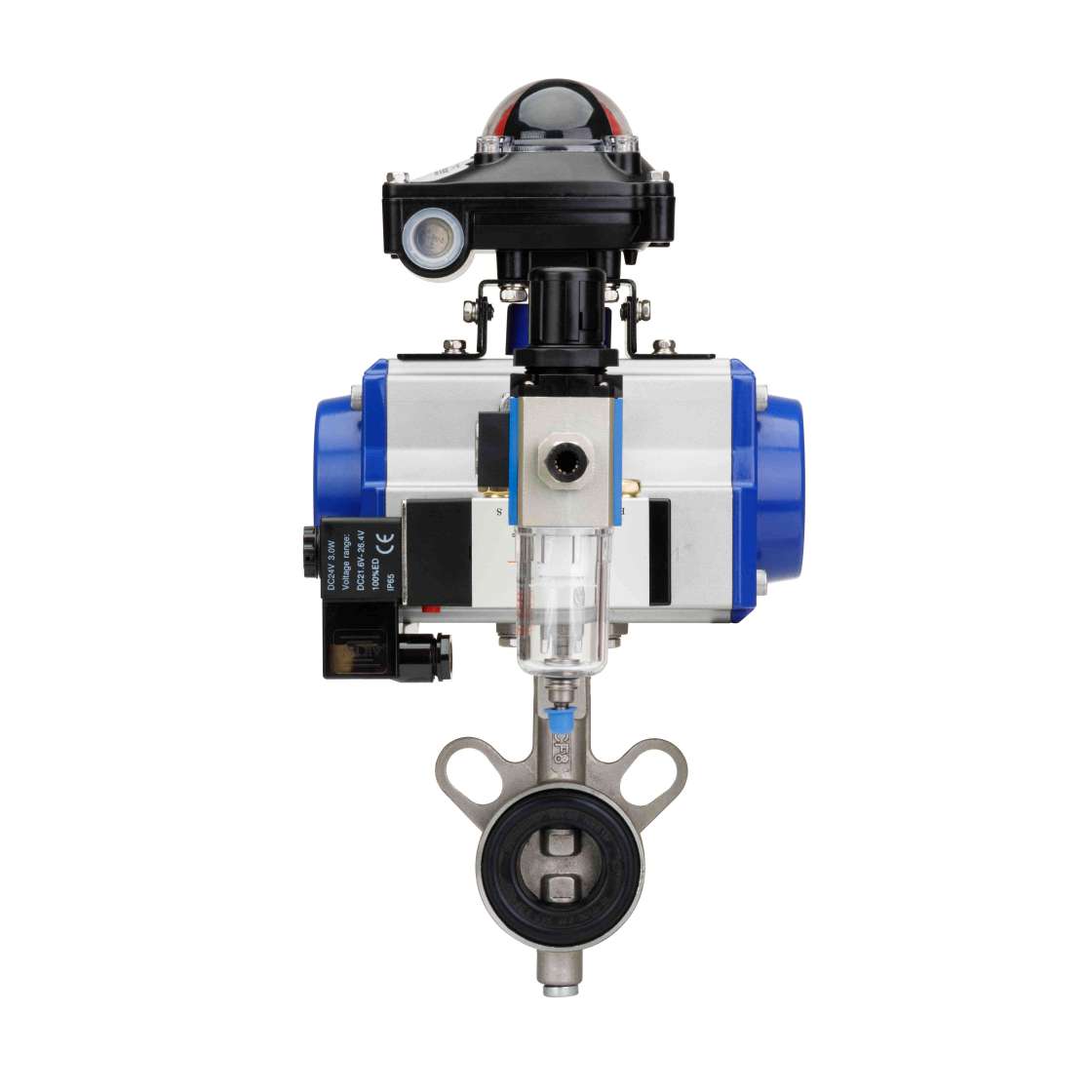

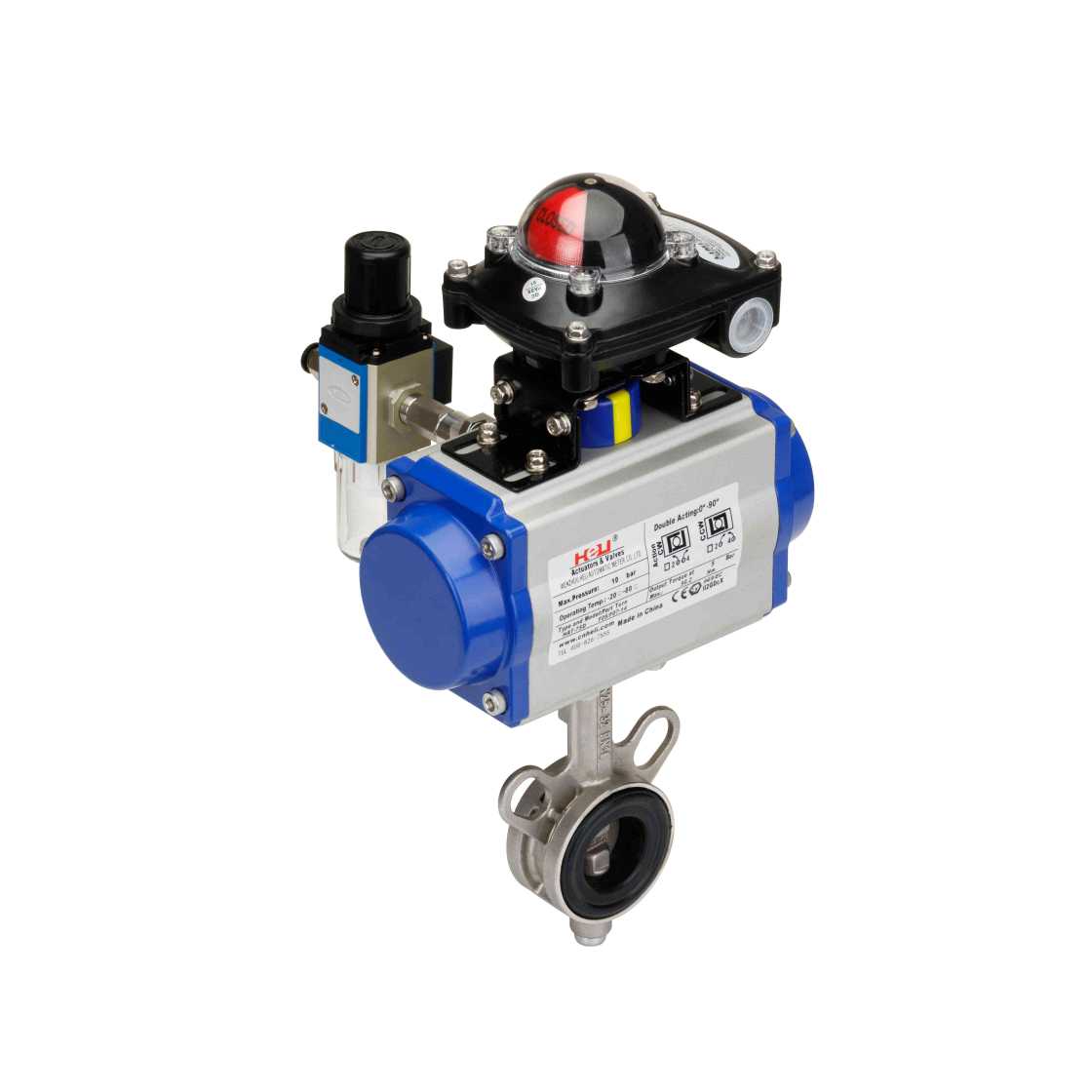

    A stainless steel pneumatic butterfly valve consists of several key cmponents: the valve body, the butterfly disc (or plate), the pneumatic actuator, and the seals. The body of the valve is typically made from stainless steel due to its superior resistance to corrosion, high temperatures, and various harsh chemicals. Stainless steel ensures the longevity and reliability of the valve, especially when exposed to extreme working environments.

    The butterfly disc i the core part of the valve, which rotates around a central shaft to open or close the valve. When the valve is closed, the disc seals tightly against the valve body, preventing fluid from passing through. When the valve is open, the disc rotates and allows fluid to flow through the pipeline. The pneumatic actuator, powered by compressed air, controls the rotation of the disc, enabling remote and automated operation of the valve.

so    The Efficiency and Application of Stainless Steel Pneumatic Butterfly Valves in Industrial Systems

    The stainless steel pneumatic butterfly valve is a versatile and reliable valve used extensively in industrial processes to control the flow of various fluids. It combines the benefits of a durable stainless steel body with the precision of pneumatic control, offering both functionality and longevity in a wide range of applications. This valve type is primarily used for regulating the flow of gases, liquids, and slurries in pipelines, making it an essential component in industries such as chemicals, oil and gas, water treatment, and food processing.
